tsn-granular

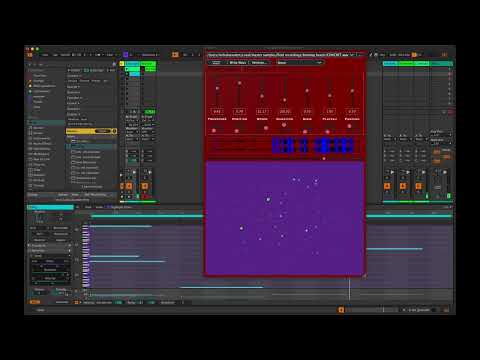

tsn-granular is the timbre space navigation (TSN)-enabled version on slicer_granular. It contains all of the capabilities of slicer_granular, with the main addition that it analyzes the uploaded sample, splitting it into smaller segments via onset detection, and organizes these segments into an interactive multidimensional timbre space. Here is a video demonstration of the synth in action:

Building

Prerequisites

• CMake 3.15 or higher
• C++20 compatible compiler
• Eigen3
• libsamplerate
• Python 3.8 or higher (for building Essentia)
• Git

Note: JUCE is included as a submodule and will be automatically fetched when you run git submodule update --init --recursive.

Note: Build instructions below are provided for macOS and Linux. Windows builds should be possible but have not been tested. Windows users will need to install the prerequisites through vcpkg, chocolatey, or manual installation.

macOS

brew install eigen libsamplerate cmake

Note: macOS builds require macOS 13.0 or higher as the deployment target.

Linux

sudo apt-get install libeigen3-dev libsamplerate0-dev cmake python3

Build Instructions

Clone the repository

git clone https://github.com/nvssynthesis/tsn-granular.git
cd tsn-granular

Initialize submodules recursively

git submodule update --init --recursive

Create build directory

mkdir build
cd build

Configure and build

cmake ..
cmake --build . --config Release

The plugin will be automatically copied to your system's plugin directory

Note: Essentia is automatically cloned and built by CMake during the first build. This may take several minutes.

Build Options

Parallel Builds

Speed up compilation by setting the number of parallel jobs:

CMAKE_BUILD_PARALLEL_LEVEL=8 cmake --build . --config Release

Using System Libraries

By default, some dependencies (fmt, Xoshiro) are fetched automatically. To use system-installed versions instead:

cmake -DUSE_SYSTEM_LIBRARIES=ON ..
cmake --build . --config Release

Plugin Formats

The build produces:

• AU (Audio Unit) - macOS only
• VST3 - macOS and Linux
• Standalone application

All formats are automatically installed to your system's standard plugin directories after building.
