hypr-ringlight

A customizable ring light overlay for Hyprland/Wayland

Features • Demo • Installation • Usage • Configuration • Architecture • IPC API • License

hypr-ringlight displays a glowing ring light effect around the edges of your screen(s). Inspired by the Edge Light feature introduced in macOS Tahoe.

Note: This project is experimental and under active development.

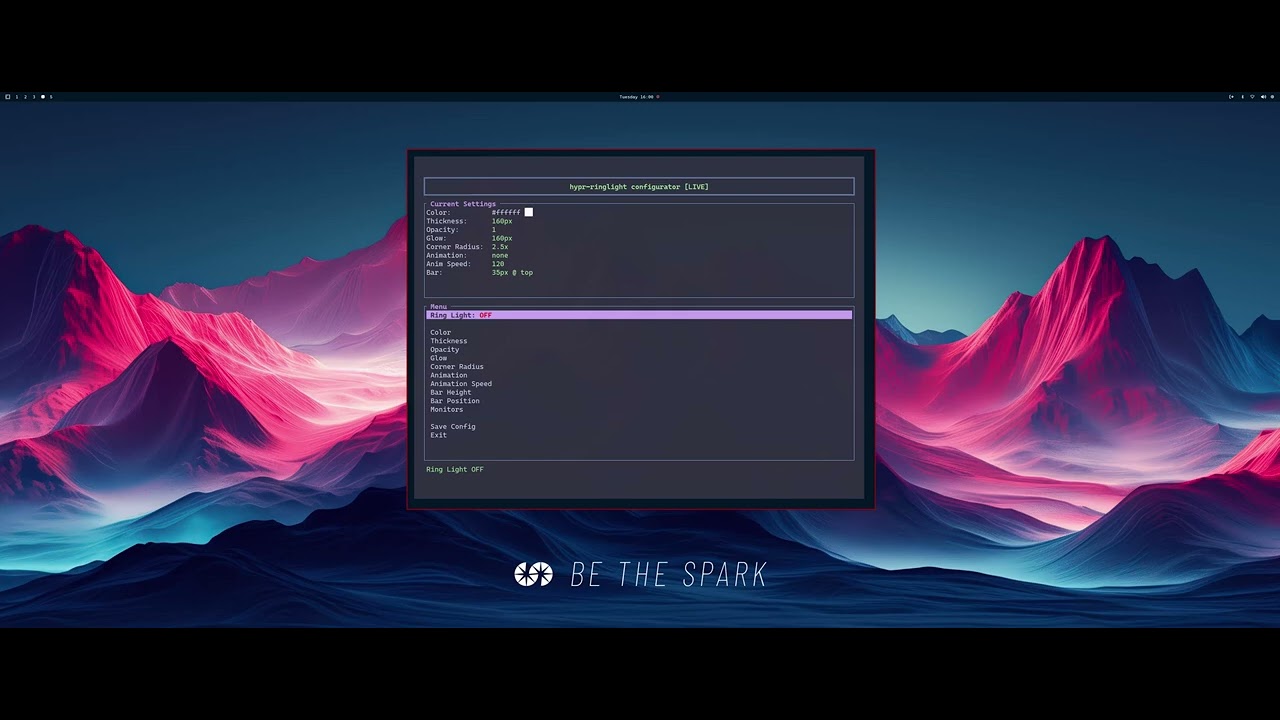

Demo

Click to watch the demo on YouTube

Features

Smooth glow effect with customizable intensity
Rounded inner corners for a polished look
Multi-monitor support with per-monitor toggle
System tray integration with full control
Interactive TUI configurator with live preview
Multiple animations: None, Pulse, Rainbow, Breathe, Wave
Click-through: doesn't block mouse input or scrolling
IPC support for scripting and automation
Omarchy theme integration: automatically uses accent color from Omarchy themes
Camera notifications: alerts when webcam is in use to remind you to enable the ring light
Configurable thickness, color, opacity, and glow radius
Persistent configuration (~/.config/hypr-ringlight/config.toml)
Works with any Wayland compositor supporting wlr-layer-shell

Requirements

Hyprland (or any Wayland compositor with wlr-layer-shell support)
System tray (e.g., Waybar with tray module)
D-Bus (for tray integration)
fuser command (for camera notifications, usually in psmisc package)
Notification daemon (e.g., mako, dunst) for camera alerts

Installation

From source

# Clone the repository
git clone https://github.com/stefanomainardi/hypr-ringlight.git
cd hypr-ringlight

# Build
cargo build --release

# Install system-wide (optional)
sudo cp target/release/hypr-ringlight /usr/local/bin/

Dependencies

Arch Linux

sudo pacman -S rust dbus

Debian/Ubuntu

sudo apt install rustc cargo libdbus-1-dev pkg-config

Fedora

sudo dnf install rust cargo dbus-devel

Usage

Basic

# Start the ring light
hypr-ringlight

# Open the TUI configurator
hypr-ringlight config

With custom options

# Red ring with rainbow animation
hypr-ringlight --color ff0000 --animation rainbow

# Thicker ring with more glow
hypr-ringlight --thickness 120 --glow 100

# Adjust for a bottom bar
hypr-ringlight --bar-position bottom --bar-height 40

Interactive TUI Configurator

hypr-ringlight config

The TUI provides an interactive way to configure all ring light parameters. It automatically uses your Omarchy theme colors if available, falling back to Catppuccin Mocha otherwise.

┌─────────────────────────────────────────┐
│          hypr-ringlight config          │
│                                  [LIVE] │
├─────────────────────────────────────────┤
│  > Ring Light: ON                       │
│    Color                                │
│    Thickness: 80                        │
│    Opacity: 100%                        │
│    Glow: 80                             │
│    Corner Radius: 2.5                   │
│    Animation: None                      │
│    Animation Speed: 120                 │
│    Monitors                             │
│    ──────────────                       │
│    Save & Exit                          │
│    Exit without saving                  │
└─────────────────────────────────────────┘

Controls:

Key	Action
`↑/↓` or `j/k`	Navigate options
`←/→` or `h/l`	Adjust values
`Enter`	Select / Enter submenu
`Esc`	Go back / Exit
`q`	Quit

Live Preview: If the ring light is already running, changes are applied in real-time. The TUI shows [LIVE] when connected or [OFFLINE] when the ring light isn't running.

Configuration

Command Line Options

Option	Default	Description
`-c, --color`	`ffffff`	Ring color in hex format (e.g., `ff0000`)
`-t, --thickness`	`80`	Ring thickness in pixels
`-o, --opacity`	`1.0`	Ring opacity (0.0 - 1.0)
`-g, --glow`	`80`	Glow/blur radius in pixels
`--corner-radius`	`2.5`	Inner corner radius multiplier
`-a, --animation`	`none`	Animation: `none`, `pulse`, `rainbow`, `breathe`, `wave`
`--animation-speed`	`120`	Animation speed (lower = faster)
`--bar-height`	`35`	Height of your status bar in pixels
`--bar-position`	`top`	Bar position: `top`, `bottom`, `left`, `right`

Config File

Settings are stored in ~/.config/hypr-ringlight/config.toml:

color = "89b4fa"
thickness = 80
opacity = 1.0
glow = 80
corner_radius = 2.5
animation = "none"
animation_speed = 120
bar_height = 35
bar_position = "top"
disabled_monitors = []

Field	Type	Description
`color`	String	Hex color without `#` prefix
`thickness`	Integer	Ring thickness in pixels (10-200)
`opacity`	Float	Opacity value (0.0-1.0)
`glow`	Integer	Glow radius in pixels (0-200)
`corner_radius`	Float	Corner radius multiplier (0.0-10.0)
`animation`	String	Animation mode
`animation_speed`	Integer	Animation speed (1-500)
`bar_height`	Integer	Status bar height compensation
`bar_position`	String	Status bar position
`disabled_monitors`	Array	List of disabled monitor names

System Tray

Right-click the tray icon to access:

Menu Item	Description
Show/Hide Ring	Toggle visibility
Width	Preset sizes and fine adjustment (+5/-5)
Animation	Select animation mode
Monitors	Enable/disable per monitor

Changes made from the tray are automatically saved to the config file.

Architecture

flowchart TB
    subgraph Main["Main Process (hypr-ringlight)"]
        direction TB
        subgraph Input["Input Sources"]
            Wayland["Wayland Surfaces<br><i>smithay-client-toolkit</i>"]
            Tray["System Tray<br><i>ksni / D-Bus</i>"]
            IPC["IPC Server<br><i>Unix Socket</i>"]
        end

        State["SharedState<br><code>Arc&lt;Mutex&lt;IpcState&gt;&gt;</code>"]

        subgraph StateFields[" "]
            Fields["color | thickness | opacity | glow<br>animation | visible | disabled_monitors"]
        end

        Render["Render Loop<br><i>calloop event loop</i>"]
    end

    subgraph TUI["TUI Process (hypr-ringlight config)"]
        direction TB
        Ratatui["Ratatui Interface<br><i>Color, Thickness, Animation, Monitors</i>"]
        Client["IPC Client"]
    end

    Config[("Config File<br>~/.config/hypr-ringlight/config.toml")]
    Socket{{"Unix Socket<br>/run/user/{uid}/hypr-ringlight.sock"}}
    Monitor1["Monitor 1"]
    Monitor2["Monitor 2"]
    MonitorN["Monitor N..."]

    Wayland --> State
    Tray --> State
    IPC --> State
    State --> StateFields
    StateFields --> Render

    Render --> Monitor1
    Render --> Monitor2
    Render --> MonitorN

    Ratatui --> Client
    Client <--> Socket
    Socket <--> IPC

    Config -.->|"Load on startup"| Main
    State -.->|"Auto-save"| Config

    style Main fill:#1e1e2e,stroke:#89b4fa,stroke-width:2px,color:#cdd6f4
    style TUI fill:#1e1e2e,stroke:#a6e3a1,stroke-width:2px,color:#cdd6f4
    style Config fill:#313244,stroke:#f9e2af,stroke-width:2px,color:#cdd6f4
    style Socket fill:#313244,stroke:#fab387,stroke-width:2px,color:#cdd6f4
    style State fill:#45475a,stroke:#cba6f7,stroke-width:2px,color:#cdd6f4
    style Render fill:#45475a,stroke:#f38ba8,stroke-width:2px,color:#cdd6f4

Component Overview

Component	Description
Wayland Surfaces	Layer shell surfaces rendered on each monitor using `smithay-client-toolkit`
System Tray	D-Bus based tray icon using `ksni` crate
IPC Server	Unix socket server for inter-process communication
SharedState	Thread-safe state container (`Arc<Mutex<IpcState>>`)
Render Loop	Main event loop using `calloop` for frame scheduling
TUI Process	Separate process for configuration, communicates via IPC

Data Flow

User Input (Tray/TUI/CLI) modifies SharedState
Render Loop reads SharedState on each frame
Wayland Surfaces are redrawn with new parameters
Config File is updated when changes are saved

IPC API

hypr-ringlight exposes a Unix socket at /run/user/{uid}/hypr-ringlight.sock for external control.

Protocol

Send JSON commands terminated by newline. Responses are JSON objects.

Commands

SetColor

{"SetColor": "ff0000"}

SetThickness

{"SetThickness": 100}

SetOpacity

{"SetOpacity": 0.8}

SetGlow

{"SetGlow": 120}

SetCornerRadius

{"SetCornerRadius": 3.0}

SetAnimation

{"SetAnimation": "rainbow"}

Values: "none", "pulse", "rainbow", "breathe", "wave"

SetAnimationSpeed

{"SetAnimationSpeed": 80}

SetVisible

{"SetVisible": true}

GetMonitors

"GetMonitors"

Response:

{
  "monitors": [
    {"name": "DP-1", "enabled": true},
    {"name": "HDMI-A-1", "enabled": false}
  ]
}

SetMonitorEnabled

{"SetMonitorEnabled": {"monitor": "HDMI-A-1", "enabled": true}}

Example: Shell Script Control

#!/bin/bash
SOCKET="/run/user/$(id -u)/hypr-ringlight.sock"

# Set color to red
echo '{"SetColor": "ff0000"}' | nc -U "$SOCKET"

# Enable rainbow animation
echo '{"SetAnimation": "rainbow"}' | nc -U "$SOCKET"

# Hide the ring
echo '{"SetVisible": false}' | nc -U "$SOCKET"

# Get monitor list
echo '"GetMonitors"' | nc -U "$SOCKET"

Example: Python Integration

import socket
import json
import os

def send_command(command):
    sock_path = f"/run/user/{os.getuid()}/hypr-ringlight.sock"
    with socket.socket(socket.AF_UNIX, socket.SOCK_STREAM) as s:
        s.connect(sock_path)
        s.send((json.dumps(command) + "\n").encode())
        return s.recv(1024).decode()

# Set thickness
send_command({"SetThickness": 120})

# Get monitors
response = send_command("GetMonitors")
print(json.loads(response))

Autostart

Hyprland

Add to ~/.config/hypr/hyprland.conf:

exec-once = hypr-ringlight

With custom options

exec-once = hypr-ringlight --color 00ffff --animation breathe --thickness 60

Omarchy Theme Integration

hypr-ringlight integrates with Omarchy to automatically use your theme colors.

Automatic Color Selection

When hypr-ringlight starts:

If no --color is specified and the config has the default white (ffffff)
It reads the accent color from ~/.config/omarchy/current/theme/colors.toml
The ring light uses your theme's accent color automatically

TUI Theming

The TUI configurator also reads Omarchy theme colors:

Uses accent for highlights and selected items
Uses background for the interface background
Uses foreground for text
Falls back to Catppuccin Mocha if Omarchy isn't available

Live Theme Reload

When you change your Omarchy theme, you can reload the ring light color without restarting:

# Send SIGUSR2 to reload theme color
killall -SIGUSR2 hypr-ringlight

Integration Script

For seamless Omarchy integration, install the helper script:

sudo cp scripts/omarchy-restart-hypr-ringlight /usr/local/bin/

This script can be called by omarchy-theme-set to automatically update the ring light when themes change.

Camera Notifications

hypr-ringlight monitors your webcam and shows a desktop notification when it detects the camera is in use.

How It Works

Monitors /dev/video* devices every 5 seconds using fuser
When a camera becomes active and the ring light is hidden, shows a notification
The notification reminds you to enable the ring light for video calls

Requirements

fuser command (usually part of psmisc package)
A notification daemon (e.g., mako, dunst)

Disabling Camera Notifications

Camera monitoring runs automatically. To disable it, you can start hypr-ringlight with the ring already visible:

hypr-ringlight --visible

Or toggle visibility via the system tray immediately after starting.

Troubleshooting

Issue	Solution
Ring doesn't appear	Ensure compositor supports `wlr-layer-shell`
Tray icon missing	Check if system tray is running (Waybar tray module)
Tray icon not working	Verify D-Bus: `systemctl --user status dbus`
High CPU usage	Expected during animations; use `--animation none`
TUI shows [OFFLINE]	Start the main ring light process first
Changes not persisting	Use "Save & Exit" in TUI or modify from tray
Camera notifications not showing	Install `psmisc` for `fuser` and ensure notification daemon is running
Theme color not updating	Send `killall -SIGUSR2 hypr-ringlight` after changing Omarchy theme

Tech Stack

Crate	Purpose
`smithay-client-toolkit`	Wayland protocol bindings
`wayland-client`	Low-level Wayland communication
`calloop`	Event loop for frame scheduling
`ksni`	System tray (StatusNotifierItem)
`ratatui`	Terminal UI framework
`crossterm`	Terminal manipulation
`serde` / `serde_json`	Serialization
`toml`	Config file parsing
`clap`	Command line argument parsing
`signal-hook`	Unix signal handling (SIGUSR2)
`notify-rust`	Desktop notifications

Contributing

Contributions are welcome! Please feel free to submit issues and pull requests.

License

This project is licensed under the GNU General Public License v3.0 or later - see the LICENSE file for details.

Made with Rust for the Hyprland community

Name		Name	Last commit message	Last commit date
scripts		scripts
src		src
.gitignore		.gitignore
Cargo.lock		Cargo.lock
Cargo.toml		Cargo.toml
LICENSE		LICENSE
README.md		README.md

Latest commit

History

Folders and files

Repository files navigation

hypr-ringlight

Demo

Features

Requirements

Installation

From source

Dependencies

Arch Linux

Debian/Ubuntu

Fedora

Usage

Basic

With custom options

Interactive TUI Configurator

Configuration

Command Line Options

Config File

System Tray

Architecture

Component Overview

Data Flow

IPC API

Protocol

Commands

SetColor

SetThickness

SetOpacity

SetGlow

SetCornerRadius

SetAnimation

SetAnimationSpeed

SetVisible

GetMonitors

SetMonitorEnabled

Example: Shell Script Control

Example: Python Integration

Autostart

Hyprland

With custom options

Omarchy Theme Integration

Automatic Color Selection

TUI Theming

Live Theme Reload

Integration Script

Camera Notifications

How It Works

Requirements

Disabling Camera Notifications

Troubleshooting

Tech Stack

Contributing

License

About

Resources

Stars

Watchers

Forks

Releases

Packages

Contributors

Languages
